Goldhofer RA 2 - 110

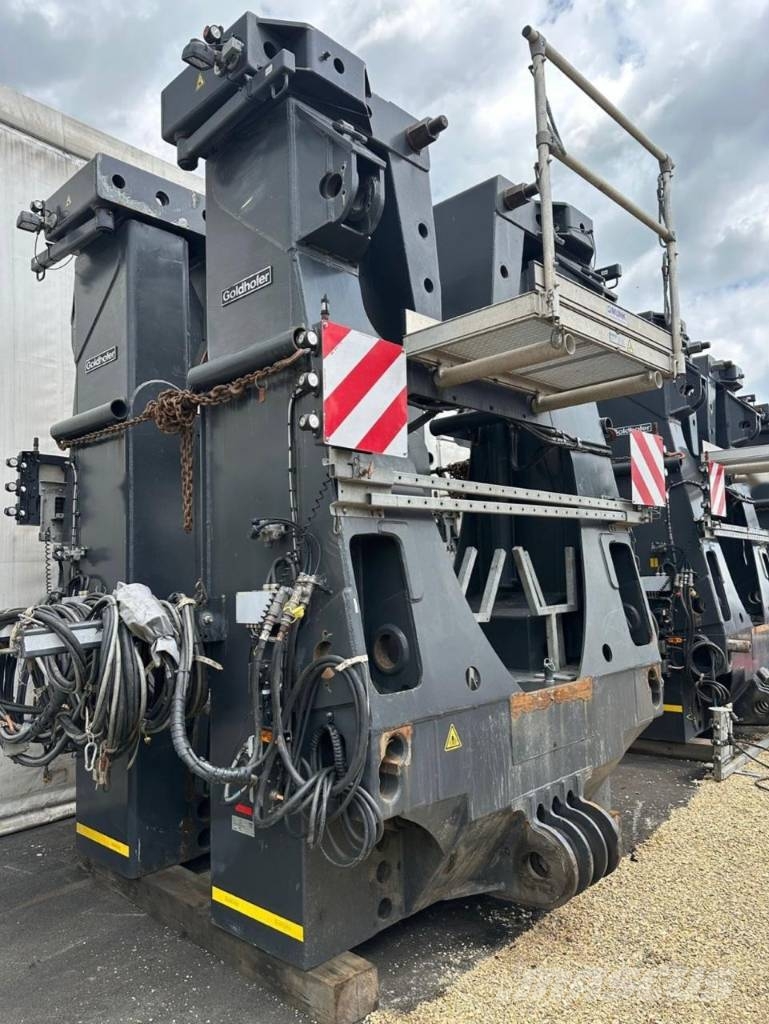

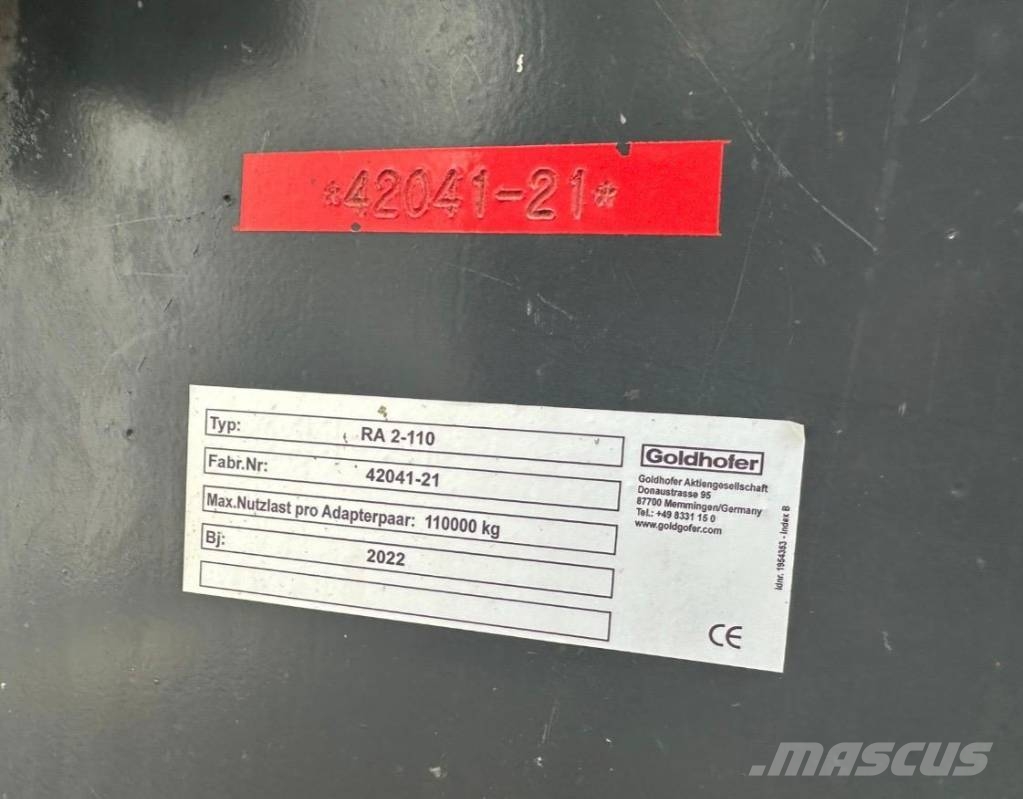

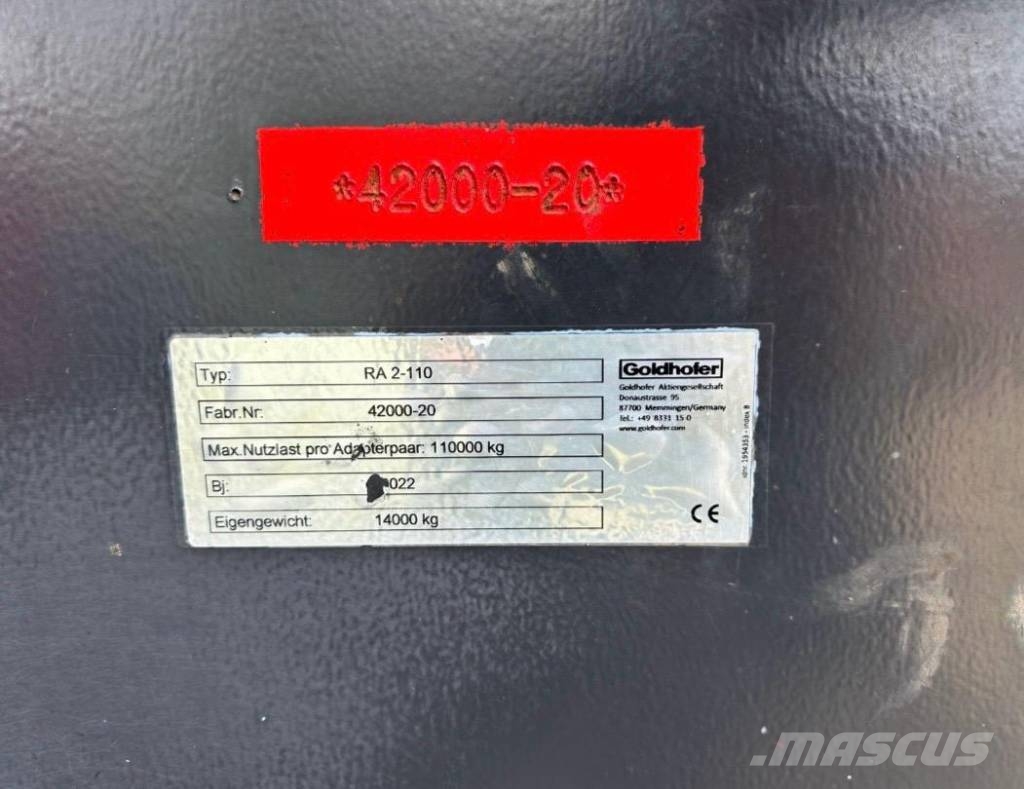

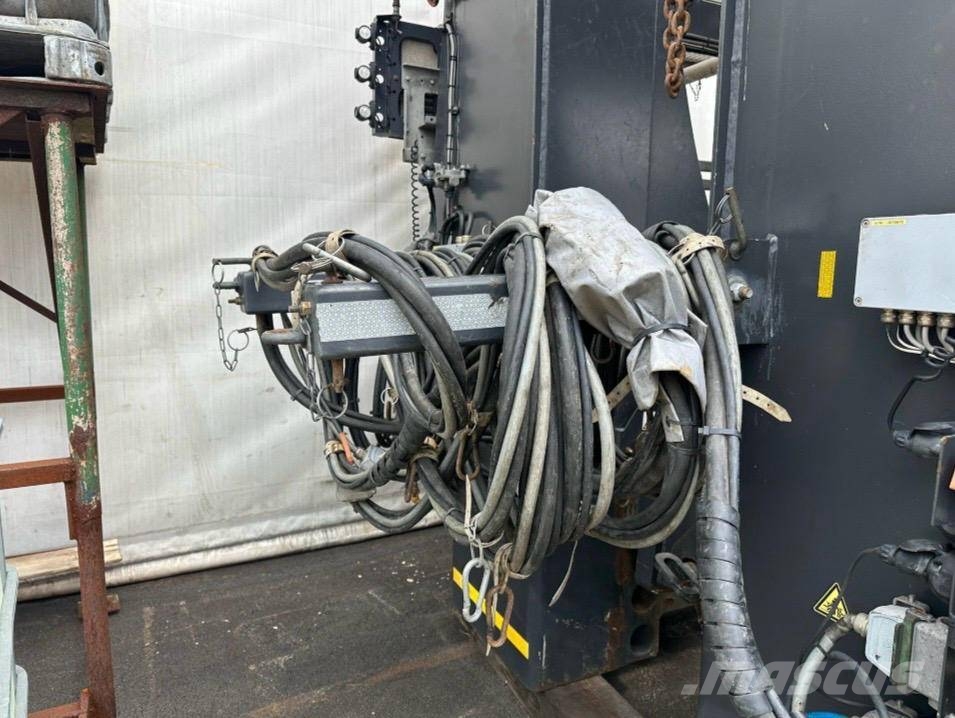

Goldhofer RA2-120 (Tower Adapter) YOC 2022 Serial numbers: 42000-20 / 42041-21 The Goldhofer RA 2-110 is a tower adapter system for the transport of wind turbine tower sections, where the tower section itself forms the load-bearing structure between the two adapters. The adapters couple directly to Goldhofer THP modular trailers and handle tower sections with inner or outer flange from 2,150 mm up to 5,740 mm in diameter — and up to 6,780 mm with plug-in extension elements. Built in 2022, the set is equipped with access platforms with guard rails, lighting, warning boards and complete hydraulic and electrical connections. 1x set available TECHNICAL SPECIFICATION Max. payload per adapter pair 110,000 kg (according to type plate) Max. payload 2 x 60 t (depending on combination) Tare weight 14,000 kg (according to type plate) Inner flange diameter 2,300 – 5,740 mm Outer flange diameter 2,150 – 5,100 mm Plug-in extension elements For tower diameters up to 6,780 mm (inner flange) and up to 6,150 mm (outer flange) Swept radius with free-turning device 4,900 mm / 5,700 mm / 6,500 mm Coupling Directly couplable to Goldhofer THP modular trailers Option Can alternatively be used with free-turning device Equipment (as per photos) Access platforms with guard rails, LED work lights, warning boards, hydraulic and electrical hose packages and couplings Condition Used — see photos Available at short notice -More information upon request-
